Introduction to Zve, Zvl and its LLVM implementation

This is a technical write-up of my first contribution to the LLVM RISC-V backend (specifically on the V extension). If you have any questions to the blog post, please feel free to contact me.

  1. Introduction
  2. What are Zve and Zvl sub-extensions for?
    1. Dependencies between the extensions
    2. The standard V extension and its implication to Zve, Zvl
  3. Main goals for compiler support on Zve, Zvl
    1. Let vector register length information be captured
    2. Restrict intrinsic functions based on architecture specified
    3. Macro information for application usage
  4. LLVM implementation sketch
    1. Unify logic in RISCVISAInfo
    2. Add sub-extension zvl, assert vector register length with it
    3. Add sub-extension zve, restrict intrinsics with it
    4. Update minimum requirement for vector intrinsics
    5. Pointer to files
  5. Wrap up

Introduction

Back in first month in Sifive, right after I was on-board, as an LLVM & compiler developer I think it is best to get familiar with RVV by putting my hands on it. So I asked Kai if there is anything I can put my hands on to get familiar with RISC-V and what we are doing in the upstream. At that time, the v-spec v1.0-rc1 just came out, and the compiler needs to support the added Zve and Zvl. Therefore I went on to take the task and worked on it.

Before explaining anything technical, I want to thank my teammate Kai for giving me pointer to files. I want to thank my teammate Zakk for giving me pointers across the code base, alongside with many useful suggestions on how can I do this contribution. He also contributed commits on zve and requirement checks in RISCVISAInfo. I also want to thank my teammate Craig for reviewing through my patches. I really appreciate their help!

What are Zve and Zvl sub-extensions for?

These are sub-extension regarding the RISC-V Vector extension. They are used to specify the actual architecture, which the code should be compiled onto.

The Zve sub-extension specifies the minimum vector register length required and what types of data type are supported.

The Zvl sub-extension specifies the minimum vector register length required. The RVV instruction set allows different VLEN configurations.

Dependencies between the extensions

We need canonical representations for these extensions, as zvl128b_zvl256b is equivalent to zvl_64b_zvl_256b (and also solely zvl256b). In this sense we should derive implications for these sub-extension specifications.

We shouldn’t actually see them as “implications”, but rather “dependence” when to support such architecture. For example, zve32f is zve32x with 32-bit floating-point support, which requires zve32f to “require” (depend) on zve32x.

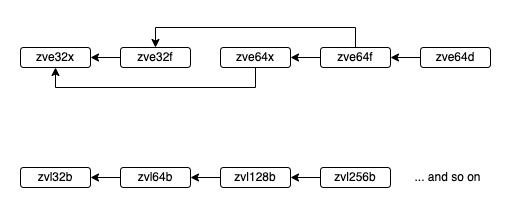

We can simply sketch out the dependence for the Zve sub-extension. For the Zvl sub-extension, the longer length specifications simply depends on shorter length specifications. Additionally, the Zve sub-extension also depends on their corresponding Zvl length.

The standard V extension and its implication to Zve, Zvl

Per the v-spec document:

The V vector extension requires Zvl128b.

The V extension requires the scalar processor implements the F and D extensions, and implements all vector floating-point instructions for floating-point operands with EEW=32 or EEW=64 (including widening instructions and conversions between FP32 and FP64).

In conclusion, V depends on zve64d and zvl128l , so on with their subsequent dependencies.

Main goals for compiler support on Zve, Zvl

Let vector register length information be captured

For vector-related optimizations, they will need vector register information to legalize the transformation. So the compiler will need to have vector register length respect the zvl*b specified.

Restrict intrinsic functions based on architecture specified

Intrinsic functions should be limited upon the architecture specified. For example, if we have zve32x, then we (the compiler) should not be able to compile RVV intrinsics with EEW = 64 or floating point operands.

Macro information for application usage

For applications to be aware of the vector architecture it is running upon, it suppose to leverage on some macro and program accordingly when the macro returns with different values. As the pull request in riscv-c-api-doc proposed:

Introduce __riscv_v_min_vlen__riscv_v_max_eew and __riscv_v_max_eew_fp macro, for let programer easier to get vector related information, like:

– What’s the minimal VLEN value guaranteed in current architecture extension?

– What’s the maximal available EEW guaranteed in current architecture extension?

– What’s the maximal available EEW for floating-point operation guaranteed in current architecture extension?

So the compiler implementation will need to have those API added for the users.


Besides the 2 main goals above, the compiler also needs to guarantee canonical output for the architecture string of these extensions. Meaning we need some place for the compiler to deal with the dependency implications of these sub-extensions.

LLVM implementation sketch

This was my first time submitting patches. So I didn’t have a clear inside-out planning on how should the commits should be. I was modifying all over the code base until things start to work.

Unify logic in RISCVISAInfo

Prerequisite work to support sub-extension implication is needed before the actual sub-extension addition. We need mechanism for “multi-character extension” parsing and places for dependency check and extension implication (satisfy their requirements).

Please check out the patches for detail:
⚙ D109215 [RISCV] Fix arch string parsing for multi-character extensions
⚙ D112359 [RISCV] Unify depedency check and extension implication parsing logics

Add sub-extension zvl, assert vector register length with it

riscv-v-vector-bits-min was the option to specify minimum vector register length before Zvl was out, the option writes to RISC-V’s target transform info, allowing to contain vector register width information. The addition of Zvl will need to make sure legality between the option.

Please check out the patch for detail:
⚙ D108694 [RISCV] Add the zvl extension according to the v1.0 spec

Add sub-extension zve, restrict intrinsics with it

Since Zve depends on their corresponding Zvl specifications, this addition is rightfully after the previous step. Since we have macro defined for application usage, we can also leverage them to restrict the RVV intrinsic builtin definitions inside riscv_vector.h (the header file for RVV intrinsic builtin-s).

Please checkout the patches for detail:
⚙ D112408 [RISCV] Add the zve extension according to the v1.0 spec
⚙ D112986 [Clang][RISCV] Restrict rvv builtins with zve macros

Update minimum requirement for vector intrinsics

Now that we have the Zve extensions, zve32x becomes the new minimum requirement to include vector instructions. We have successfully added the two sub-extensions!

Please checkout the patch for detail:
⚙ D112613 [Clang][RISCV] Change TARGET_BUILTIN to require zve32x for vector instruction

Pointer to files

  • RISCVISAInfo.cpp interacts with architecture string parsing
    • Extension definitions are inside RISCV.td.
  • RISCVVEmitter.cpp generates the header file: riscv_vector.h
    • Instruction definitions are inside riscv_vector.td.
  • RISCVAsmParser.cpp parses architecture string for assembly-s.
  • lib/Basic/Targets/RISCV.cpp defines the macro-s in ELF (Executable and Linkable Format)

Test cases when changing architecture string:

llvm/test/MC/RISCV/attribute-arch.s
llvm/test/CodeGen/RISCV
clang/test/Driver/riscv-arch.c
clang/test/Preprocessor/riscv-target-features.c
clang/test/CodeGen/RISCV

Wrap up

I am happy to have the chance to participate the development for this new RISC-V evolution. Chances like this is why I chose to join SiFive at the very first point. I like how the company tries to grow upon building up the RISC-V ecosystem.

For others that have already broken the entry barrier to become an LLVM developer, you will never need to join anywhere to start developing. RISC-V and LLVM is in the open and welcoming everyone to help out.
